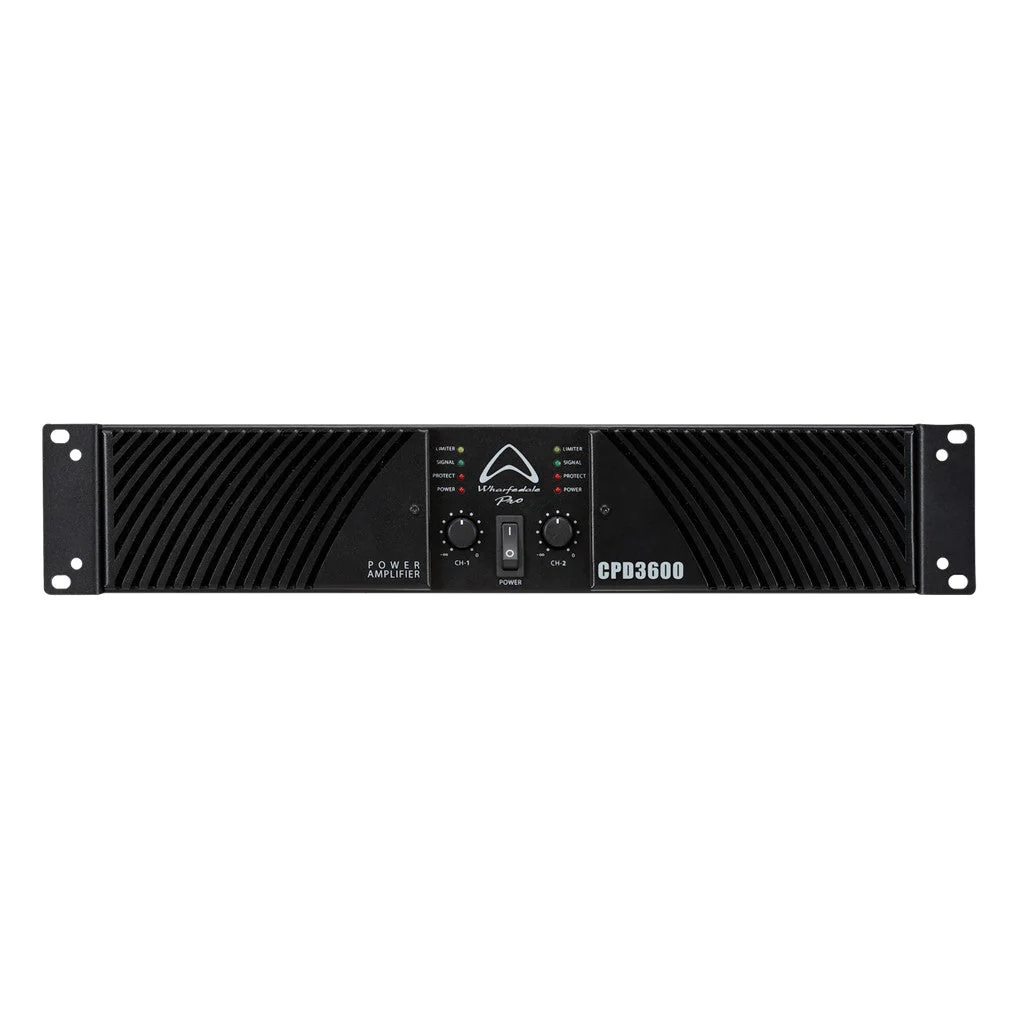

Wharfedale Pro CPD3600 2-Channel Professional Power Amplifier

Wharfedale Pro CPD3600 2-Channel Professional Power Amplifier

The Wharfedale Pro CPD3600 is a high-performance 2-channel Class H power amplifier designed for touring, rental, installation, and professional live sound. Delivering up to 870 watts per channel at 8Ω and 1300 watts per channel at 4Ω, it provides exceptional headroom for demanding loudspeaker systems.

A heavy-duty toroidal transformer delivers stable power under varying mains conditions, while Stereo, Parallel, and Bridge operating modes offer flexible system configuration. Variable-speed cooling fans, a switchable limiter, and comprehensive protection circuitry ensure dependable performance in professional environments.

Key Features

• Professional 2-channel Class H power amplifier
• 870W per channel at 8Ω
• 1300W per channel at 4Ω
• 2590W bridged output at 8Ω
• Heavy-duty toroidal transformer
• Stereo, Parallel and Bridge operating modes
• Switchable output limiter
• Variable-speed cooling fans
• Removable front grille for air filter maintenance
• XLR inputs, XLR link outputs and 4-pole speaker connectors

Specifications

• Amplifier Type: Class H
• Channels: 2
• Power Output (8Ω): 2 × 870W
• Power Output (4Ω): 2 × 1300W
• Bridged Output (8Ω): 2590W
• Frequency Response: 20Hz–30kHz
• Signal-to-Noise Ratio: ≥100dB
• Damping Factor: >300
• Inputs: 2 × XLR
• Link Outputs: 2 × XLR
• Speaker Outputs: 2 × 4-Pole Speaker Connectors
• Dimensions (W × D × H): 483 × 450 × 88mm
• Weight: 22kg
