Wharfedale DELTA-AX12 12" Active 2 way, 750w

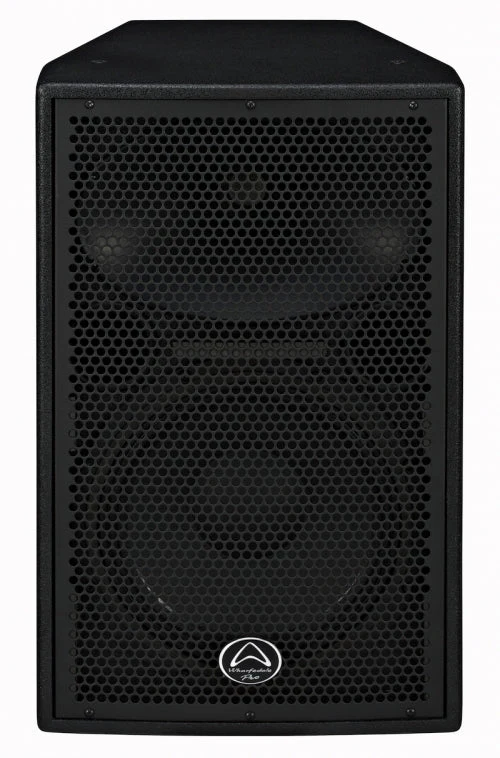

Product image 1

Wharfedale DELTA-AX12 12" Active 2 way, 750w

The updated DELTA-AX series features improved internal electronics. The newly designed power components ensure high performance and extreme reliability.

DELTA-AX can easily be recognised with the iconic Wharfedale Pro boomerang logo routed into the top surface.
Ā
Capable of producing extraordinary levels of SPL and output, inside every DELTA-AX speaker are high headroom amplifiers exclusively engineered by Wharfedale Pro. The 2 way 12ā€ and 15ā€ models also feature an integrated 2 channel mixer with onboard Qubit DSP insuring smoother and more controlled sonic performance.
Ā
DELTA-AX is constructed from birch plywood and features dual angle pole mounts to ensure that your sound is aimed directly at the audience, not at the ceiling.
Ā
....and it is ready for installation
Multiple rigging points and durable construction also make DELTA-AX a great installation solution. Clubs, restaurants and houses of worship around the world already rely on DELTA systems day in, day out.
Ā
Ā

Key Features
  • 12" two-way bi-amplified active loudspeaker
  • Premium Baltic birch construction
  • 750w Continuous power
  • 1500w Peak power
  • 90Ā° x 45Ā° dispersion
  • 2" HF Compression driver
  • 3" LF voice coil
  • Advanced Internal QuBit DSPĀ
    Ā
ADVANCED ELECTRONICS
Around the back are a host of features

Ā

Dual mic inputs with combi-jack connections for line inputs.

Ā

RCA inputs for easy connection to consumer level audio sources.

Ā

Hands-on EQ control for Hi and Low frequencies

Ā

Balanced Link output to connect to more active loudspeakers.

Ā

Hi Pass filter switch to roll off low end when using in a monitor position.
BIRCH PLYWOOD CONSTRUCTION
DELTA-AX uses premium Baltic birch plywood construction.

Ā

Not only does this create a solid and durable cabinet, but also contributes to the overall sound.

Ā

DELTA-AX is also covered in our most durable and hard wearing Rhino Rock paint finish. This ensures that a DELTA-AX will always look as good as the day you unboxed it.
ROUTED WHARFEDALE PRO LOGO
DELTA-AX features a routed Wharfedale Pro logo.

Ā

This fresh design helps to distinguish between the original DELTA-A models and the updated DELTA-AX models.

Ā

It is also a logo to be proud of. A logo that lets your audience know that the sound of your even will be of the highest possible quality.
CLASS D BI-AMPLIFIED
Inside the DELTA-AX12 are two, highly efficient Class D amplifiers.

Ā

Using convection cooling, DELTA-AX models do not use any internal fans. Fans add to product weight, ambient noise and can lead to unreliability. DELTA-AX has no fans!

Ā

The two amplifiers are dedicated to each driver. One amp for the HF and one amp for the LF. This perfect matching ensures that the DELTA-AX is highly efficient, converting as much as the laws of physics allow to be converted into audible output power.
Ā
Ā

SPECIFICATIONS

Model Name DELTA-AX12
System type Active 2-way bi-amplified
Frequency response (+/-3dB) 60Hz-20kHz
Frequency range (-10dB) 55Hz-20kHz
Calculated Max SPL @1m 130dB
LF Transducer 12"
Coil size 3"
Impedance 4Ī©
HF Transducer Compression driver
Coil size 2"
Exit size 1.4"
Diaphragm material Titanium
Impedance 8Ī©
Nominal coverage 90Ā° x 45Ā°
Amplifiers Ā
LF Power amp 650w RMS Class D
HF Power amp 100w RMS Class D
Protection Power switch on / off mute, Thermal, Low line voltage, DC and Short, Clip limiters
Hardware M10 x 6
Ā  Dual angle 35mm pole socket
Ā  2 x Rubberised 4-way handles
Enclosure 15mm plywood
Ā  Rhino rock paint
Grille material 1.2mm Steel
Unpacked Ā
Height 650mm / 25.2"
Width (Front) 390mm / 15.35"
Width (Rear) 241.2mm / 9.5"
Depth 373mm / 14.69"
Packed Ā
Height 745mm / 29.3''
Width (Front) 566mm / 22.3''
Width (Rear) 328mm / 12.9''
Depth 464mm / 18.3''
Weight Net 27.9kg / 61.2lbs
Weight Gross 32.5kg / 71.5lbs
Ā
Ā
Ā
Ā
Ā
Ā
Ā
$224.76

Original: $642.17

-65%
Wharfedale DELTA-AX12 12" Active 2 way, 750wā€”

$642.17

$224.76
